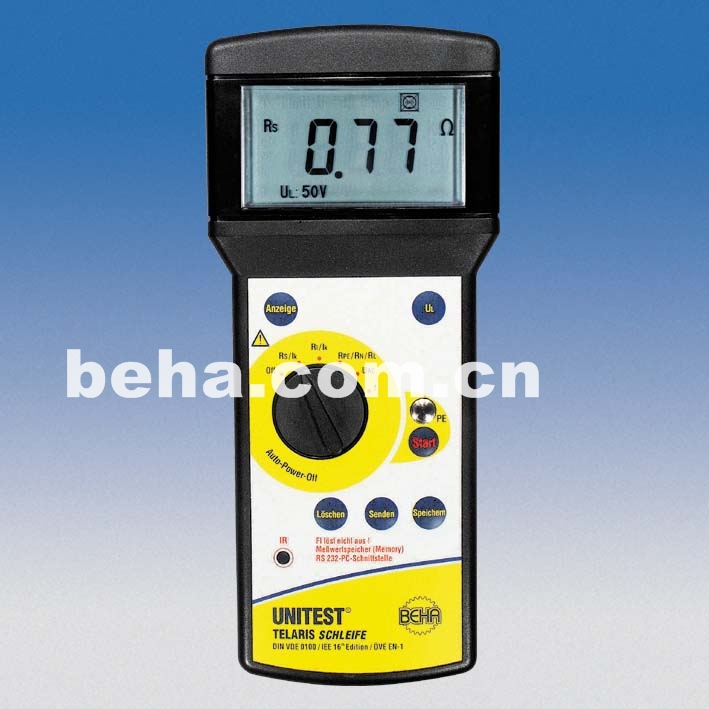

UNITEST TELARIS Loop Tester

Model: 8978


Key Functions
• Measurement of loop resistance and prospective
  short circuit current measurement without trippingthe RCD
• Line resistance and prospective short circuit current measurement
• Enables the user to measure each conductor
  resistance independently: PE resistance, phase resistance and neutral resistance
• Voltage and frequency measurement

General Information
• Integrated memory for approx. 250 measurement values
• Standard, built-in IR/RS-232 interface for transferring measurement data to the PC
• UNITEST software for recording test results is available as option
• Integrated socket test with contact electrode to enable the user to quickly establish incorrectly installed sockets and/or protective conductor failures
• Pre-selection of max. admissible contact voltage
• Clear and large LCD providing the user with an optimum visual indication of both test values and limits
• Auto power off

Special Features
• Patented measurement principle of loop resistance and prospective short circuit current measurement without tripping the RCD


Technical data
Display                        3 1/2digit; LCD; 1999 Digits
Measurement range / Resolution / Tolerance
Loop impedance         0.05...1999?/0.01...1?/±(5%rdg.+5Digits)
Line resistance            0.05...19.99?/0.01/±(5%rdg.+5Digits)
Resistance neutral connector     0.05...19.99?/0.01/±(5%rdg.+5Digits)
Resistance earth connector       0.05...1999?/0.01...1?/±(5%rdg.+5Digits)
Resistance phase connector     0.05...19.99?/0.01/±(5%rdg.+ 5 Digits)
Prospective short circuit current    1 A...4.6 kA / 1 A,10 A
Voltage                   0...300V / 1 V / ±(3% rdg.+3 Digits)
Mains frequency             10...200Hz/0.1Hz/±(1% rdg.+ 2 Digits)
Contact voltage              25 V / 50 V (selectable)
Data memorya                pprox. 250 Meas. values
Interface                         IR / RS-232 interface-adapter
Protection class             II (double insulated)
Safety complying with      IEC61010/EN61010/
                                         DINVDE0411
                                         IEC61557/EN61557/
                                         DINVDE0413
Measurement category    CAT III / 300 V
Pollution degree               2
Protection degree             IP 50
Auto-Power-Off
Power supply                   1 x 9 V, IEC 6LR61
Dimensions                      235 x 105 x 70 mm
Weighta                            pprox. 500 g


Scope of Supply:
1 pc UNITEST TELARIS LOOP
1 pc Test lead with Schuko plug system
1 pc Test lead 3-pole
3 pc Crocodile clamps
3 pc Test Probes
1 pc Protective Holster
1 pc Carrying Case
1 pc Battery 9V, IEC 6LR61
1 pc Instruction Manual
