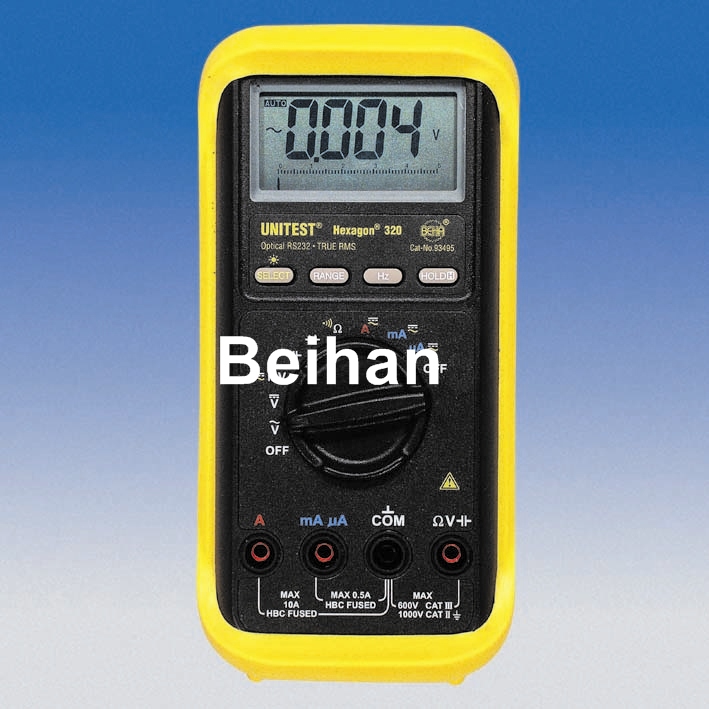

93495 UNITEST Hexagon 320

Model:93495

UNITEST Hexagon 320
True RMS Digital Multimeter 93495
• Voltage, Current and Resistance measurement
• Capacity and frequency measurement
• Diode and acoustic continuity test

Details

Download Data Sheet

UNITEST Hexagon 320
True RMS Digital Multimeter

Model: 93495

Key Functions
• Voltage, Current and Resistance measurement
• Capacity and frequency measurement
• Diode and acoustic continuity test (response time < 100µs)

General Information
• Automatic and manual measurement range selection
• Integrated Data Hold
• 5 Amp current measurement range
• Sensitive 50 mV measurement range
• 50 ? measurement range, 10 m? resolution with test lead calibration
• Fast measurement value pick-up (5 measurements per second)
• Bargraph
• Backlight
• Long-term measurement in conjunction with notebook / PC
• Auto power off (switchable)
• Impact and shock-proof due to protective cover
• Calibration and adjustment without opening the case

Technical data

Display	3 5/6 digit, LCD, 5000 Digits
Measurement Ranges
Voltage AC	0.01 mV…1000 V
Tolerance	±(0.5 % rdg. + 3 Digits)
Voltage DC	0.01 mV…1000 V
Tolerance	±(0.08 % rdg. + 2 Digits)
Current AC	0.1 µA…10 A / 20 A (30 S)
Tolerance	±(0.6% rdg. + 3 Digits)
Current DC	0.1 µA…10 A / 20 A (30 S)
Tolerance	±(0.2% rdg. + 4 Digits)
Frequency Range for AC current/voltage	50 Hz…20 kHz
Resistance	0.01 ?…50 M?
Tolerance	±(0.1% rdg. + 2 Digits)
Frequency	5 Hz…125 kHz
Tolerance	±(0.01% rdg. + 2 Digits)
Capacity	0.01 nF…9999 µF
Tolerance	±(0.8% rdg. + 2 Digits)
Measurement Category	CAT IV / 600 V, CAT III / 1000 V
Pollution Degree	2
Safety complying with	IEC 61010, EN 61010, DIN VDE 0411
Power Supply	9 V, IEC 6LR61
Dimensions	198 x 97 x 55 mm
Weight	approx. 430 g

Scope of Supply:

1 pc UNITEST Hexagon 320

1 pc Protective Rubber Holster

2 pc Test Leads

1 pc Battery 9 V, IEC 6LR61

1 pc Instruction Manual
